eSi-3200

32 bit Processor, Low-Cost & Low-Power CPU

Our eSi-3200 32-bit processor CPU IP core is an extremely small, low-cost and low-power processor ideal for integration into ASIC and/or FPGA designs with on-chip memories. The eSi-3200 is particularly suited to embedded control applications.

Download Documents

32-bit Processor: eSi-3200 Technical Overview

  • Features

    • 32-bit RISC architecture
    • 16 or 32 general purpose registers
    • 104 basic instructions and 10 addressing modes
    • Supports up to 90 user-defined instructions
    • 5-stage pipeline
    • AMBA AXI or AHB interconnect and APB peripheral bus
    • Optional support for user and supervisor modes
    • Up to 32 vectored interrupts plus NMI and system call
    • HW nested and prioritizable interrupts
    • Fast interrupt response time of 6-9 cycles
    • JTAG or serial debug, with optional trace
    • Up to 4.12 CoreMark per MHz
    • Multiprocessor support
    • Intermixed 16 and 32-bit instructions result in exceptional code density without compromising performance
    • ASIC performance (Typical 90nm):
      • Up to 700 MHz
      • From 15k gates
      • From 18uW/MHz
    • FPGA Performance (Stratix IV):
      • Up to 200 MHz
      • From 1800 ALUTs
    • High quality IP:
      • Verilog RTL
      • DFT ready
      • Silicon proven
    • C and C++ software development using license-free toolchain, under industry standard Eclipse IDE
    • Easy migration path to 16-bit version or 32-bit version with caches
  • Applications

    • Consumer
    • Industrial control
    • Medical
    • Communications
    • Storage
    • Intelligent sensors

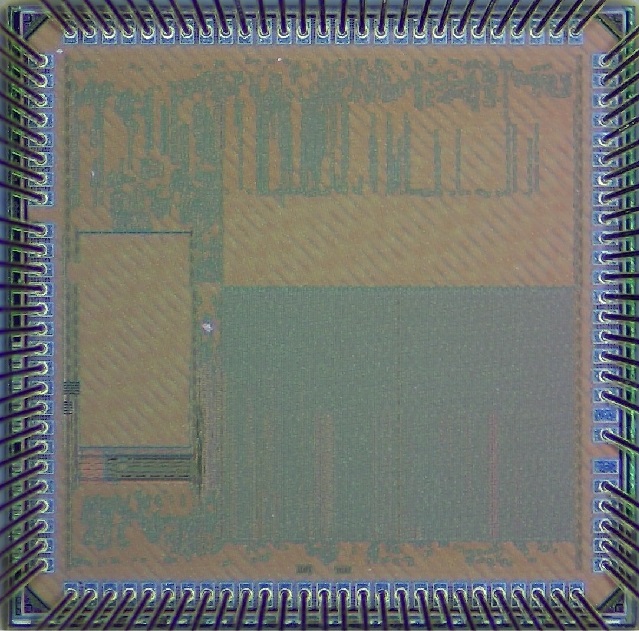

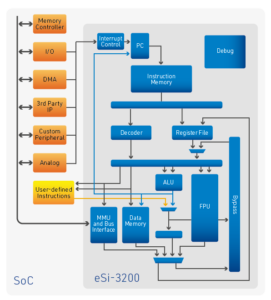

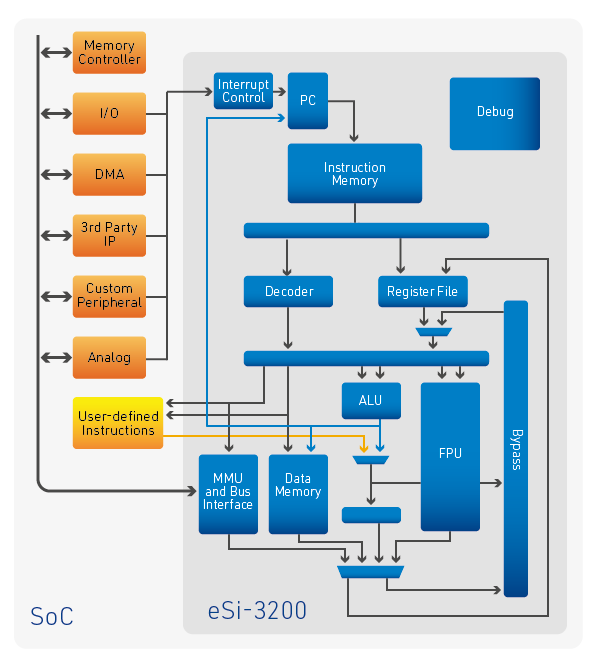

  • Architecture

    The eSi-3200 32-bit CPU is the mid-range member in the eSi-RISC family of processor cores from eSi-IP. It is targeted specifically for low-cost and low-power applications that require more computational power or a larger address space than is provided by the 16-bit eSi-1600 and that are able to be implemented using on-chip memory.

    The cacheless memory architecture of the eSi-3200 allows for deterministic performance, making it particularly suitable for hard real-time control applications.

    For applications where high performance is required, the 5-stage pipeline allows extremely high clock frequencies to be achieved.

    The eSi-3200’s instruction set includes arithmetic and logical instructions (including barrel-shift, multiply and divide), comparisons, load and stores, branches and calls as well as system level instructions to control interrupts and enter low power states. Bit manipulation instructions such as bitfield extract and insert, count leading zeros, population count, find first set and bit reverse are available. Integer square root, absolute value, min/ max, CRC and parity can also be included in a core.

    For those applications that require extreme performance or ultra low power, user-defined instructions and registers can be implemented. Instructions are encoded in either 16 or 32-bits, depending upon the size of the operands and the type of instruction. All of the commonly used instructions can be encoded in 16-bits. This ensures that high code density is achieved, while minimizing memory accesses to help conserve power.

    Hardware debug facilities include hardware breakpoints, watchpoints, trace, null pointer detection and single stepping for fast debugging of ROM, FLASH and RAM based programs.

  • Toolchain

    RISC2

    The toolchain is based upon the industry standard GNU toolchain, which includes an optimising C and C++ compiler, assembler, linker, debugger, simulator and binary utilities. All these tools can be driven by the customisable Eclipse IDE or from the command line.

    The debugger can connect to HW targets via a low cost USB-JTAG adaptor and RTL simulation via a Verilog PLI library.

    Complete C & C++ libraries are supplied. Ports of Micrium’s uC/OS-II RTOS, ThreadX, FreeRTOS and the lwIP TCP/IP stack are available. The toolchain is available for both Windows and Linux hosts and is available to use at no additional cost.

  • IP Delivery

    The eSi-3200 is delivered as a Verilog RTL IP core. The design is target technology independent and DFT ready, supporting full scan insertion for all flip flops and memory BIST. Example scripts are also provided.

    A selection of AMBA peripherals can be supplied with the core, including: UART, SPI, I2C™, I2S, Timer, PWM, Watchdog, GPIO, PS/2, RTC, Ethernet MAC, USB, FIFO, Scatter-Gather DMA, AES, SHA, ECC and a quad-SPI Flash interface. By using an industry standard bus, a wide range of 3rd party IP cores are compatible with the eSi-3200.

    eSi-RISC can generate a multilayer AHB matrix and APB bus to connect the eSi-3200 CPU, memory and peripherals, according to a customer’s specification.
